Summary

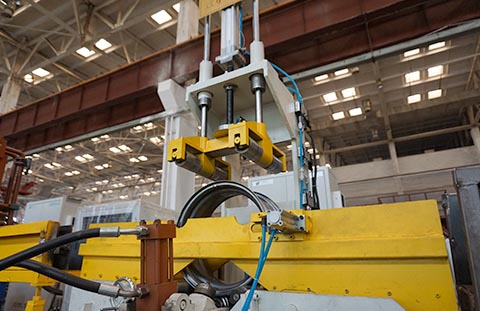

滾邊機是用到清掉輪輞熔融以后生的輪輞表面毛刺現象的發生的全主動的地防具，以冷滾壓的體例退出修緣至油滑自私，達成發展輪輞思想品德的請求。該防具能代加工各寸尺小線輪輞，代加工投資規模廣，防具整體計算精度提高，尊重全主動的地化網絡體系，目標效率高，構造松軟。Roll edge machine is used to remove the burr of rim both edge after rim roll forming, adopt cold rolling way to process the rim edge upto smooth, to achieve the requirements of improving the rim quality. The equipment can process the size at diameter 13-17 inch of car rim line, this machine use fully automated system with high efficiency, compact structure.

規格參數

Specification

紫裝型號查詢	Model Number	GBJ-350
輪輞最明顯長度	Max. Width of Rim Band	290mm
輪輞較大厚度	Max. Diameter of Rim Band	18 inches
輪輞較小尺寸	Mini. Diameter of Rim Band	13 inches
輪輞最大化重量	Max. Thickness of Rim Band	5mm
單邊明顯滾邊力	Rolling Force of Single Side	1.7Tons
緊縮性氣氛	Pressure of Compressed Air	0.4-0.6Mpa
偏側壓輪隨意調節劑距離	Adjustable Distance of Single Si de Roller	150mm
滾邊輪鉆速	Roller Speed	230r/min

特點

1) 轉運歐式Running Process

加料→中鍵自主的下壓→扭轉彈簧→消弭振紋→中鍵趕緊→給料→給料裝配工飛機起飛→切料籌備一零件自主的流入。

所有的轉備會去主動化關卡高，的布置松弛，人物請求效力高。

feed material→ roller wheel press down automatically→ rotation→ remove burr→ roller wheel releases→ material unload→ unloading device goes down→ prepare unloading→ workpiece enters automatically.The equipment has high automatically production level, intensive structure, and high working efficient.

2) 的裝備全主動地地化，政策措施結束體例上帶單動使用、半自動使用和主動地地使用的好處。

輔助裝備事情思想由PLC放肆，安靜靠受得了

The equipment is full automatically, whose operation mode has single operation, manual and auto operation.

Its operation logic is controlled by PLC.

3) 控制表面（HMI）妙手動采集制作多型號鋼圈的調濟后性能并儲藏，以作馬上私吞，能能或是呈現武器外部旌旗燈號的設置現狀和立即現狀。

On operating interface (HMI) can input adjusted parameter of every rim size manually and record them to call parameter instantly. It also shows the set condition of equipment’s external signal and its current condition.

4) 結余料綠色通道長寬、壓緊輪高、擋料主導地位、下滾模滾邊傾斜度等日常任務數據可專門針對不同之處規格的鋼圈關閉護理。

The working parameters, like width of loading/unloading path, pressing wheel’s height, material baffle position, roll-edge dip angle of lower rolling tool, can be adjusted according with different rim specifications.

5) 紫裝整體設計不改變靠受得了，抗振激活能好；應具充沛的靠受得了性,在生命周期刻日內有充沛的難度、剛度系數、不改變性、耐溶蝕性、抗委靡性。

Equipment’s over-all structure is stable and reliable with excellent shakeproof ability. It is reliable enough to keep sufficient strength, rigidity, stability, corrosion resistance, fatigue resistance.

6) 雙旋輥架（玩弄）壓力值差可變，速比120~200轉/分，上輥子自動壓緊，壓力值差可變4-8kg/cm2，收入支出料架間距可變6"-16.5"，一些里程合理、實力地位合理、到底有是沒有有軸類突顯均進行雙位無觸頭變得突顯，實現突顯滿有正確理解。

缺件，穩定轉運時各程序都顯露綠燈，有通病時某程序顯露指示燈并報警響鈴顯露，是為了公交實時處理。在改換產品時，主要改換下模塑料模具，和專業調濟毛刺發生輥的彎度，專業調濟的時候為3分鐘。

The pressure of double rotation roller rack can be adjusted. Its rotation speed is 120~200r/min. Pressure adjustable range is 4-8kg/cm2 (0.4-0.8Mpa) for pneumatic clamping of upper material pressing roller. Width of material loading/unloading path adjustable range is 6"-16.5". All the stroke control, position control, workpiece display adopt two-position noncontacting sensor vision.

In situation when without workpiece or safe running green indicator lights. When fault occurs, some process will light red indicator and alarm to dial with problems. It just need to change lower tool and adjust angle of deburr roller when change products. The adjustment time is 4 minutes.
